SINGLE DIRECT ACTING

Type

FPM-D-40-C(B)-*-*-*-*-*

Description

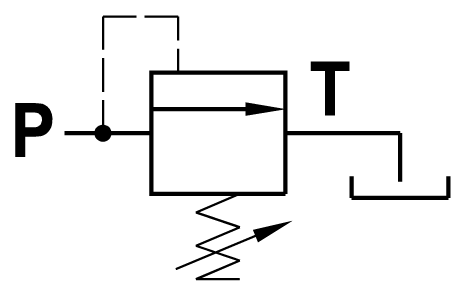

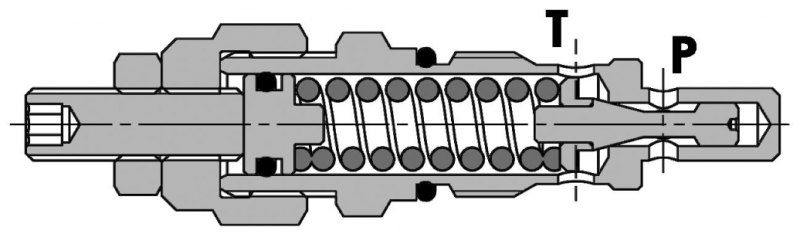

Direct acting, guided poppet style relief valve

Technical Specifications
  • TECHNICAL SPECIFICATIONS
  • Materials: cartridge in steel zinc plated, internal parts are in hardened steel. Body (only CB version) is in high strenght alluminium alloy (steel body on request).
  • Rated flow: 40 l/min
  • Max. setting: 350 bar
  • Adjustement means: leakproof screw or handknob (P/R)
  • Installation torque: 40-45 Nm
  • Cavity: 22201
  • Cartridge weight: 0,165 Kg
  • Cartridge with body weight: 0,410 Kg (std) - 0.800 Kg (ver.S)
