PRESSURE RELIEF

PILOT OPERATED

Type

FPM-P-150-C(B)-*-*-*-*

Description

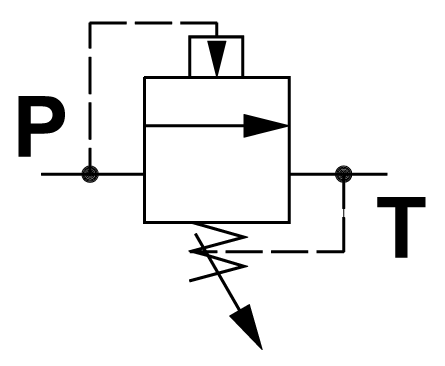

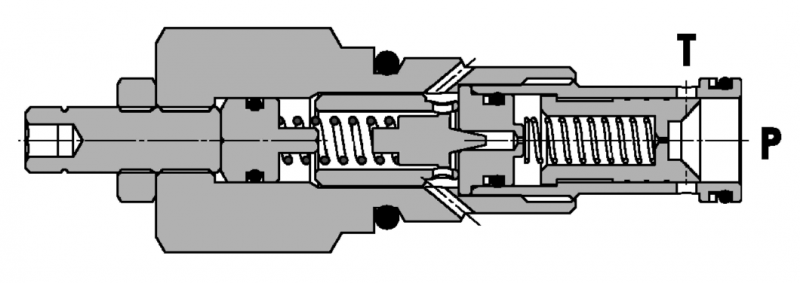

Pilot operating, sliding spool type, relief valve

Technical Specifications
  • TECHNICAL SPECIFICATIONS
  • Materials: cartridge in steel zinc plated, internal parts are in hardened steel. Body (CB version) is in high strenght alluminium alloy.
  • Rated flow: 150 l/min
  • Max. setting: 350 bar
  • Adjustement means: leakproof screw
  • Installation torque: 60 Nm
  • Cavity: 26241
  • Cartridge weight: 0,140 Kg
  • Cartridge with body (3/4”ports) weight: 0,650 Kg
  • Cartridge with body (1”ports) weight: 0,910 Kg
Download
DATA SHEET
CAVITY DIMENSIONS
