PRESSURE RELIEF

SINGLE DIRECT ACTING

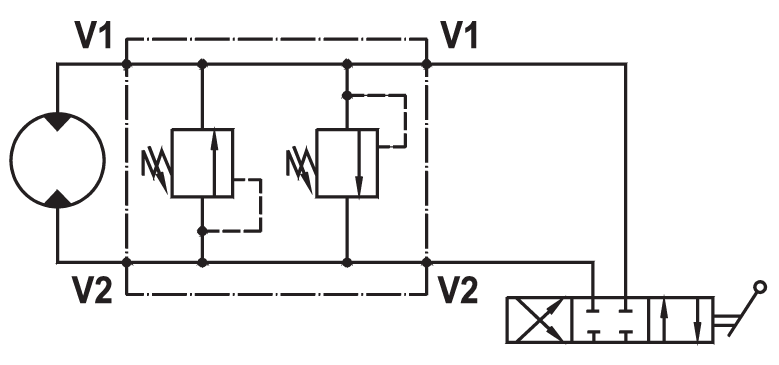

DUAL CROSS DIRECT ACTING

FOR HYDRAULIC MOTORS

FOR HYDRAULIC MOTORS

Technical Specifications

TECHNICAL SPECIFICATIONS

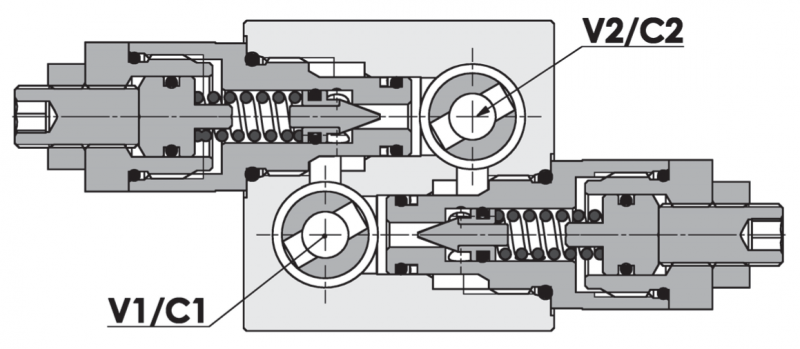

Materials: cartridge in steel zinc plated, internal parts are in hardened steel. Body is in high strenght alluminium alloy, drilled screw in steel zinc plated.
Rated flow: 15 l/min
Max. setting: 350 bar
Max. pressure: 250 bar
Adjustement means: leakproof screw or handknob (P/R)

Download

Ask for further information

Other product wich could be interesting

Dual cross main pressure relief valve, flangeable on Danfoss motors OMP/OMR series

ATTACCHI
G 1/2"

PORTATA (l/min)
50

FPM-D-40-DV-D2-*-1/2-*-*

Dual cross main pressure relief valve, flangeable on Danfoss motors OMP/OMR series

Dual cross main pressure relief valve, flangeable on Danfoss motors “OMS” series

ATTACCHI
G 1/2"

PORTATA (l/min)
50

FPM-D-40-DV-D3-*-1/2-*-*

Dual cross main pressure relief valve, flangeable on Danfoss motors “OMS” series

Dual cross main pressure relief valve, flangeable on Samhydraulik motors AG/BG/AR/BR/ARSR/MB series

ATTACCHI
G 1/2"

PORTATA (l/min)
50

FPM-D-40-DV-S1-*-1/2-*-*

Dual cross main pressure relief valve, flangeable on Samhydraulik motors AG/BG/AR/BR/ARSR/MB series

Dual cross main pressure relief valve, flangeable on Danfoss motors OMP/R/H series

ATTACCHI
G 1/2"

PORTATA (l/min)
40

FPM-D-40-DF-D2-*-1/2-*-*

Dual cross main pressure relief valve, flangeable on Danfoss motors OMP/R/H series

Dual cross main pressure relief valve, flangeable on Danfoss motors “OMS” series

ATTACCHI
G 1/2"

PORTATA (l/min)
60

FPM-D-40-DF-D3-*-1/2”-20-*

Dual cross main pressure relief valve, flangeable on Danfoss motors “OMS” series

Dual cross main pressure relief valve, flangeable on Danfoss motors “OMT” series

ATTACCHI
G 3/4"

PORTATA (l/min)
70

FPM-D-70-DF-D4-*-3/4”-*-*

Dual cross main pressure relief valve, flangeable on Danfoss motors “OMT” series
