NORMALLY CLOSED

Type

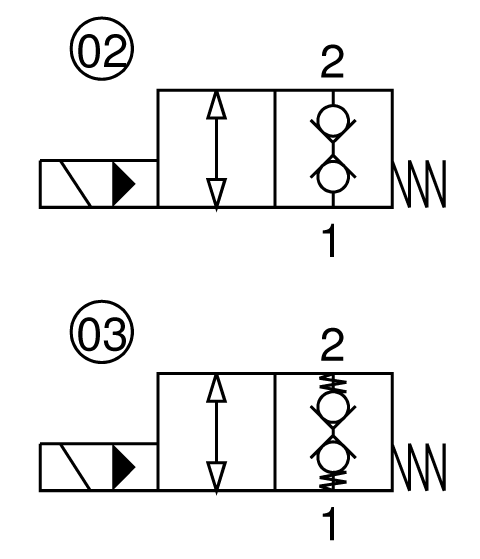

FP-22-PD-*-02/03-*-*

Description

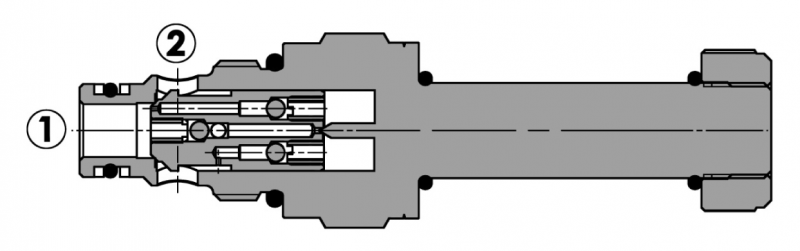

2 way, pilot operated electric valve, double lock poppet, normally closed

Technical Specifications
  • TECHNICAL SPECIFICATIONS
  • Materials: cartridge in steel zinc plated, internal parts in hardened steel.
  • Flow range:
  • S08: 1-50 L/min; S10: 5-70 L/min; S12: 10-140 L/min
  • Max. pressure: 350 bar
  • Installation torque: see page 2
  • Cavity: 23081 - 23101 - 23121
  • Cartridge weight: see page 2
  • Coils: version C-13, see section Y
  • Oil temperature: -20°C + 80°C
  • Ambient temperature range: -30°C + 60°C
  • Recommended filtration: nominal max. 10µ, ISO 4406-19/17/14 (NAS8) or less.
  • Inlet voltage fluctuations must not exceed ±10% of nominal voltage.
